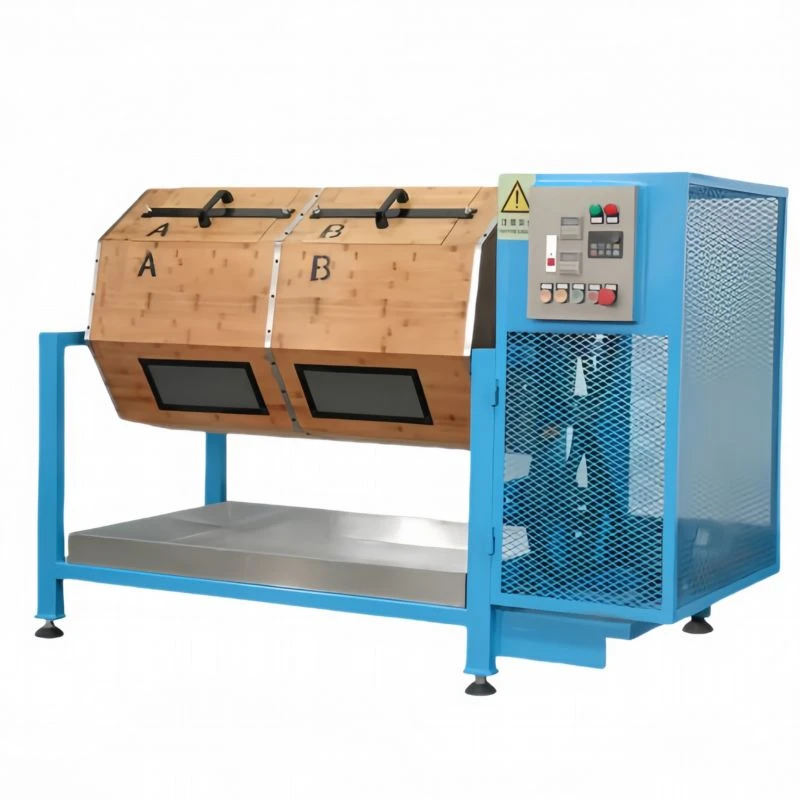

Wood Barrel Tumbling Machine

Product Introduction:

The Wood Barrel Tumbling Machine is a batch-type dry surface finishing system featuring wooden tumbling barrels. Compared to metal barrels, wood provides a gentler finishing action, making it particularly suitable for final polishing, brightening, and surface refinement of delicate and precision workpieces.

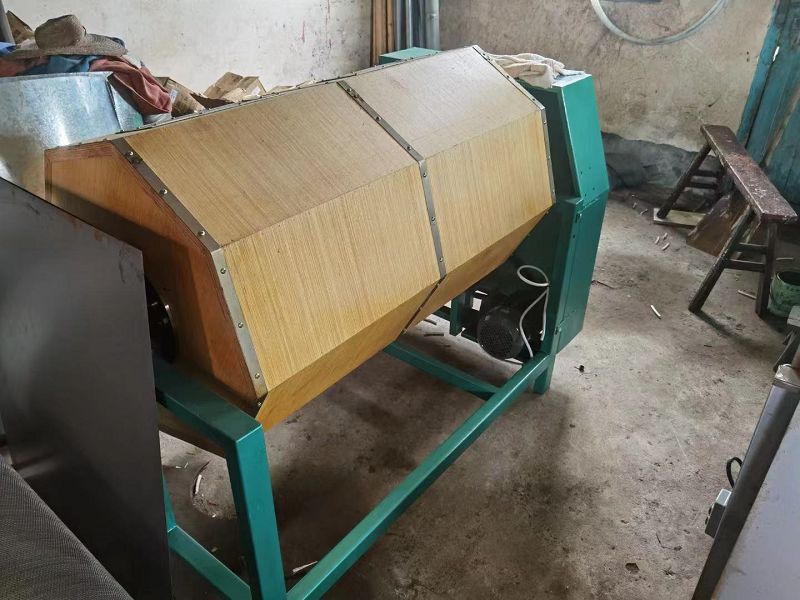

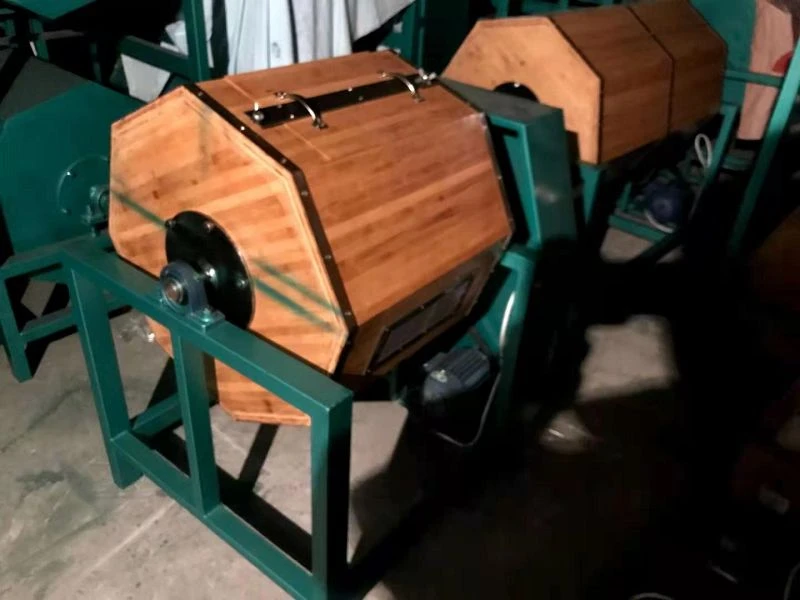

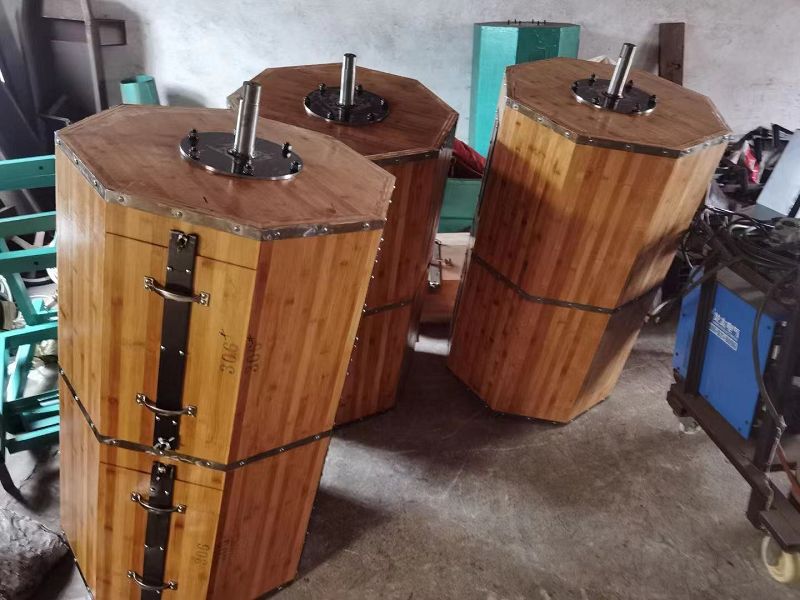

The machine utilizes an octagonal wooden barrel structure, where the rotation of the barrel drives workpieces and abrasive media into continuous tumbling motion, achieving uniform surface treatment results. It is compatible with a wide range of materials including gold, silver, copper, stainless steel, titanium, aluminum alloys, plastics, acrylic, wood products, and precision parts such as eyewear, watch components, and jewelry.

Send Inquiry

Description

Technical Parameters

Core Working Principle

The machine consists of an octagonal wooden barrel and a drive system. When workpieces and abrasive media are loaded into the barrel, it rotates at approximately 28–38 RPM. The contents slide and tumble as the barrel turns, creating a continuous "avalanche" motion that generates uniform friction between the media and workpiece surfaces-completing deburring, polishing, and brightening in a single process.

The barrel supports bi-directional rotation (forward and reverse) to ensure uniform finishing and consistency. Ventilation holes in the barrel help maintain stable internal temperatures, preventing heat damage to workpieces.

Advantages of Wooden Barrels

Compared to metal barrels, wooden barrels offer the following distinct benefits:

Gentle Finishing

Wood provides a softer abrasive action, suitable for delicate and precision parts, preventing surface scratches or deformation

Lightweight Construction

Wooden barrels reduce overall equipment weight and load

Low Noise Operation

Significantly quieter than metal barrel equipment

Eco-Friendly & Cost-Effective

Wood is a sustainable material with lower production costs

Key Features

Variable Frequency Speed Control & Bi-Directional Rotation

Equipped with variable frequency drives for flexible speed adjustment based on workpiece material and process requirements. Timed forward/reverse rotation ensures consistent finishing quality and prevents deformation or uneven processing caused by single-direction force.

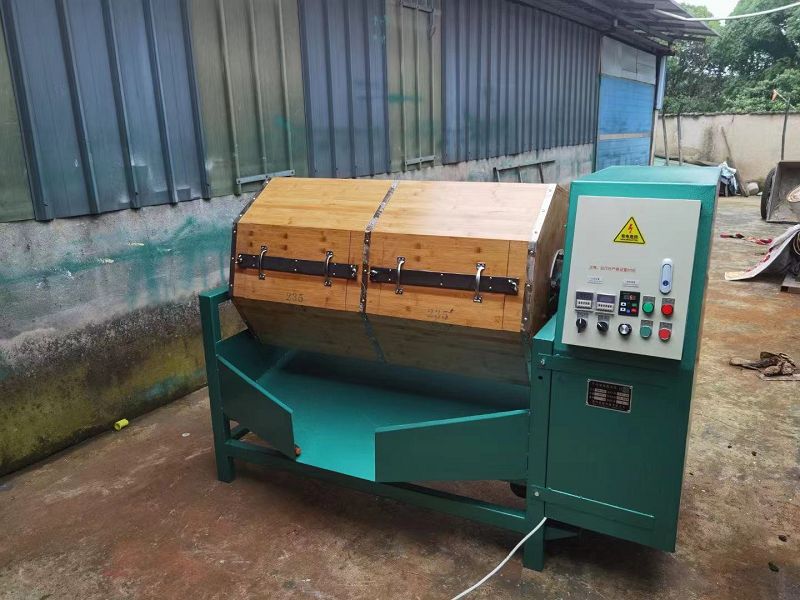

Discharge Door & Separation Screen

Features a dedicated discharge door and separation screen, allowing rapid separation of finished workpieces from abrasive media-improving operational efficiency and ease of use.

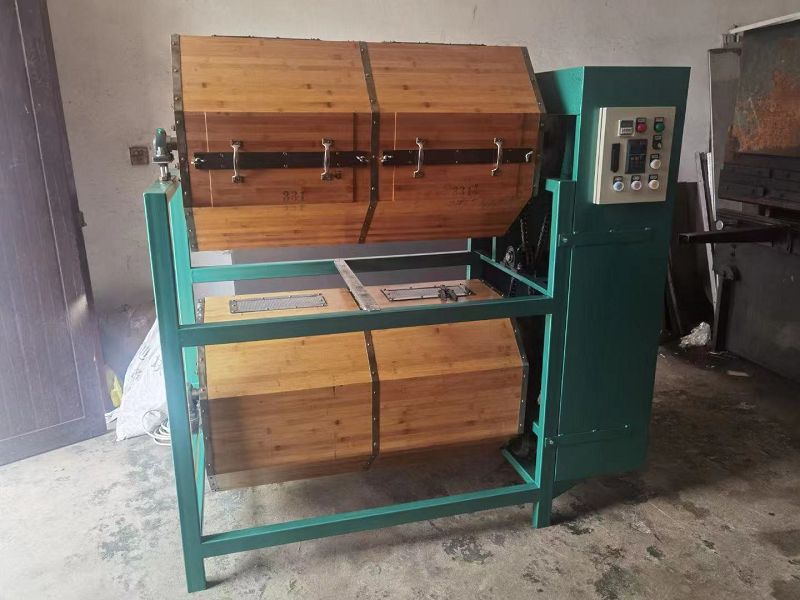

High Capacity & Multi-Barrel Configurations

Available in single-layer and double-layer configurations. Double-layer models feature four wooden barrels, providing substantial processing capacity for simultaneous fine and ultra-fine polishing. Typical capacities range from 300L to 600L.

Ventilation Hole Design

Ventilation holes in the barrel body maintain stable internal temperatures during processing, preventing surface quality issues caused by excessive heat buildup.

24-Hour Continuous Operation

The robust design supports long-duration continuous operation, ideal for high-volume production environments.
