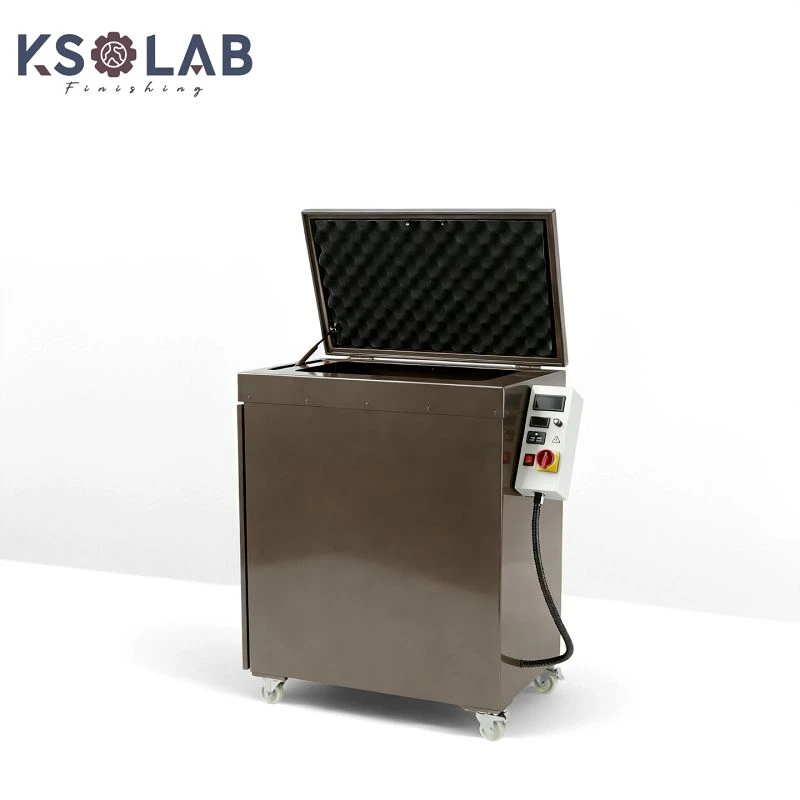

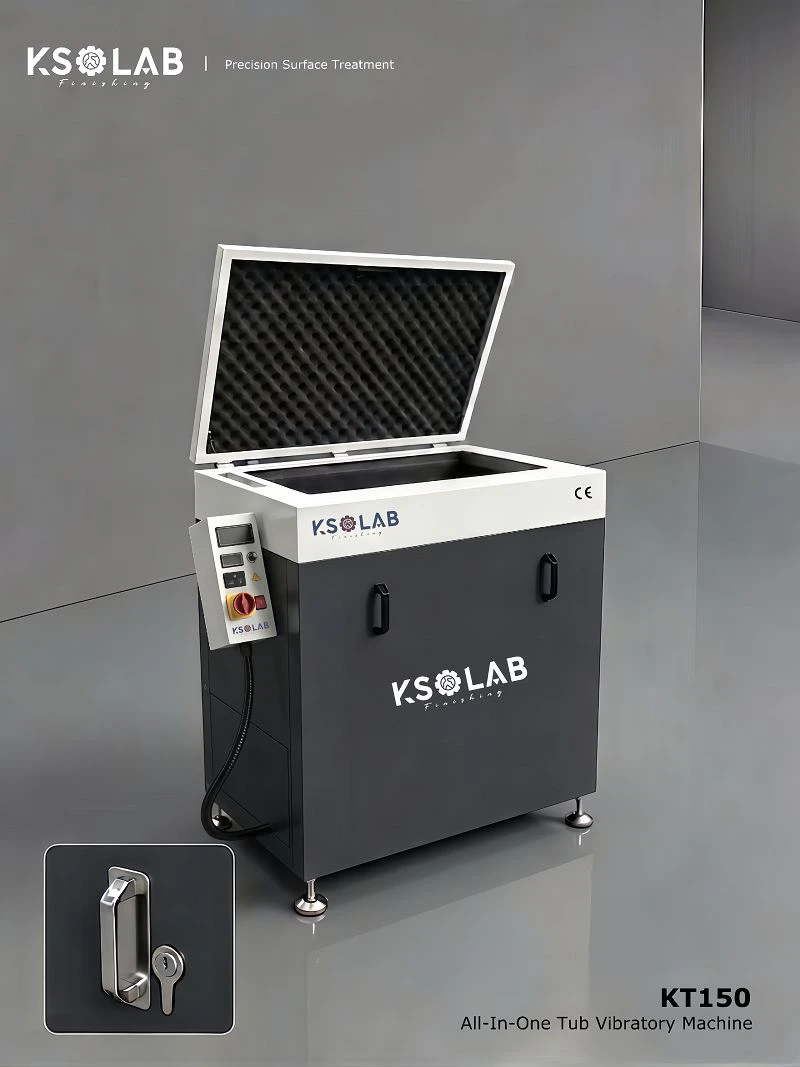

All-In-One Tub Workshop

Product Introduction:

The All-In-One Tub Workshop is a versatile, high-efficiency vibratory finishing system that integrates multiple surface treatment processes—deburring, polishing, cleaning, edge radiusing, and descaling—into a single machine. Its elongated U-shaped trough design is specifically engineered for processing long, large, and irregular-shaped workpieces that cannot be accommodated in conventional circular vibratory bowls.
The machine generates continuous tumbling motion through powerful vibratory drives, creating uniform and controlled finishing action across the entire surface of each workpiece. Whether you are batch-processing large castings or gently polishing high-value precision components, this machine delivers consistent results.

Send Inquiry

Description

Technical Parameters

Core Working Principle

The machine operates on vibratory finishing principles. Vibrating motors mounted on both sides of the trough generate high-frequency vibrations, driving workpieces and abrasive media into a continuous spiral tumbling motion within the U-shaped work channel.
This motion creates uniform friction and cutting action between the media and workpiece surfaces, achieving deburring, edge radiusing, descaling, surface smoothing, and polishing in a single cycle. The extended trough design ensures a longer material flow path for more thorough processing.

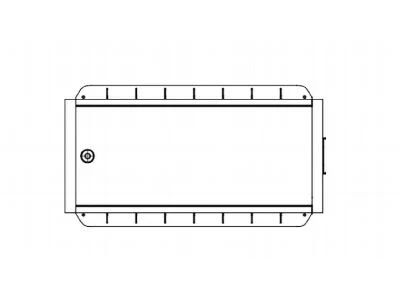

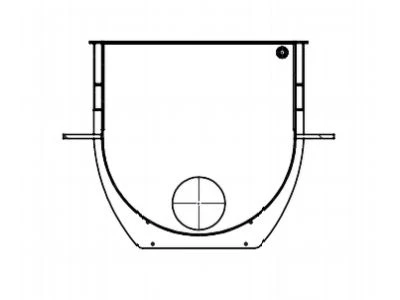

Long U-Shaped Trough Design

A defining feature of this machine is its extended U-shaped work channel, which offers the following advantages:

Designed for Oversized Workpieces

Ideal for long shafts, tubes, large structural castings, and other parts that cannot fit in circular vibratory bowls

Uniform Force Distribution

Motors installed at both ends of the trough ensure even vibration transmission

Flexible Compartmentalization

Removable dividers can be installed to create isolated compartments within the trough, preventing high-precision or delicate parts from colliding and scratching each other during processing

Key Features

All-in-One Process Integration

Combines deburring, edge radiusing, descaling, coarse grinding, fine polishing, and cleaning in a single machine-reducing equipment investment and workflow steps.

Powerful Vibratory System

Equipped with dual vibrating motors with adjustable amplitude (0.3–10mm on select models). Variable frequency drive allows flexible speed adjustment to match different workpiece materials and finishing requirements.

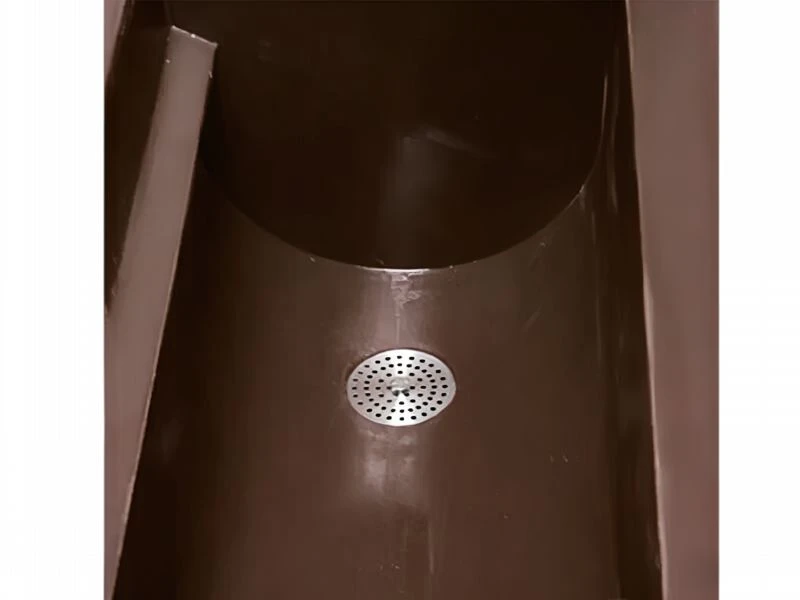

Wear-Resistant PU Lining

The trough is lined with high-quality PU (polyurethane) material with wear resistance several times greater than steel. This protects workpieces from metal-to-metal impact damage, significantly extends equipment service life, and reduces operating noise.

Wide Capacity Range

Available in capacities from 80L to 2800L, accommodating production needs from small-batch trials to large-scale manufacturing. Customizable options include compartment dividers, automatic dosing systems, soundproof covers, and advanced control panels.
