Core Working Principle

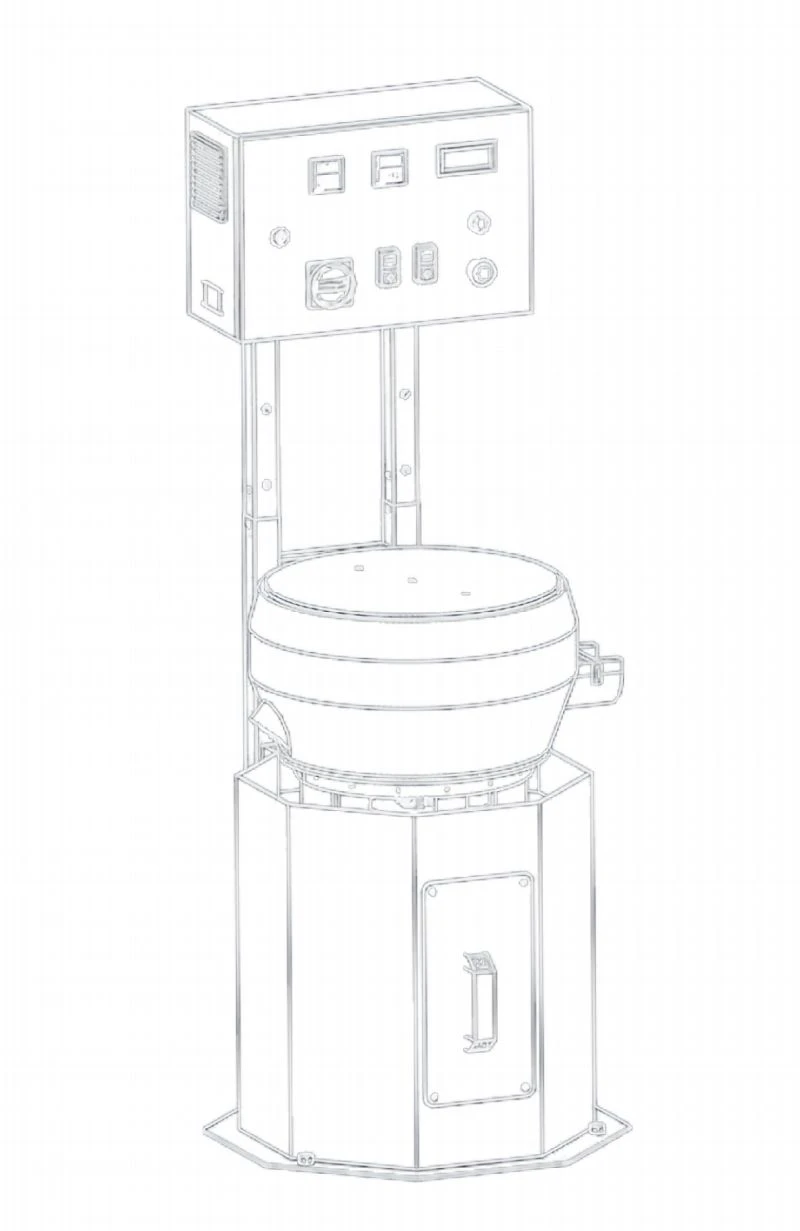

The machine operates on vibratory finishing principles. Vibrating motors mounted on the side of the machine generate stable three-dimensional high-frequency vibrations, causing workpieces and abrasive media to form a spiral tumbling motion within the annular processing chamber.

Through continuous relative friction and impact, burrs, oxidation layers, and machining marks are uniformly removed from workpiece surfaces, achieving the desired surface roughness and gloss without compromising the original dimensional accuracy of the parts.

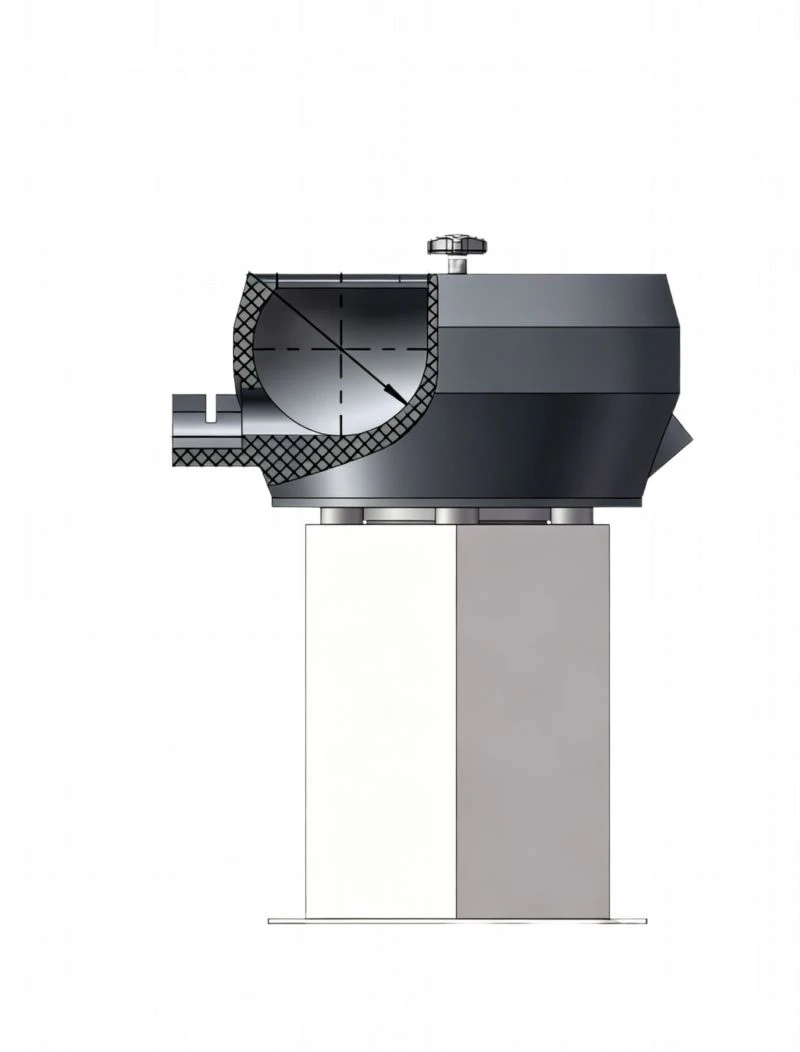

Curved Wall Bowl Design

A key feature of this machine is its curved wall bowl (arc-shaped chamber) design, which offers the following advantages:

Superior Material Flow

The curved inner wall guides media and workpieces into a smoother circulation flow, preventing accumulation and dead zones

Versatile for Various Shapes

Particularly suitable for uniform processing of workpieces with curved, arc-shaped, or irregular surfaces

Reduced Impact Damage

The curved wall minimizes sharp-edge impact on workpieces, protecting delicate components

Key Features

High-Efficiency Vibratory System

Equipped with dual vibrating motors with adjustable eccentric weights, enabling stepless vibration force adjustment to suit different workpiece requirements. High processing efficiency makes it ideal for high-volume continuous production.

Wear-Resistant PU Lining

The processing chamber features hot-molded PU (polyurethane) lining from brands like Dow Chemicals, with wear resistance several times higher than steel. This effectively protects workpieces from damage while significantly extending equipment service life.

Intelligent Control

Standard digital process timer, with optional variable frequency drives for speed adjustment and automatic compound dosing pumps for automated, repeatable processing parameters.

Multiple Capacity Options

Available in capacities ranging from 30L to 300L, accommodating production needs from small-batch trials to large-scale manufacturing.
