Core Working Principle
The machine operates on advanced spiral-flow and three-dimensional vibration principles. Vibratory motors generate excitation forces through eccentric weights, producing high-frequency vibrations that cause workpieces and media to move directionally along the annular bowl, creating uniform friction and cutting action.

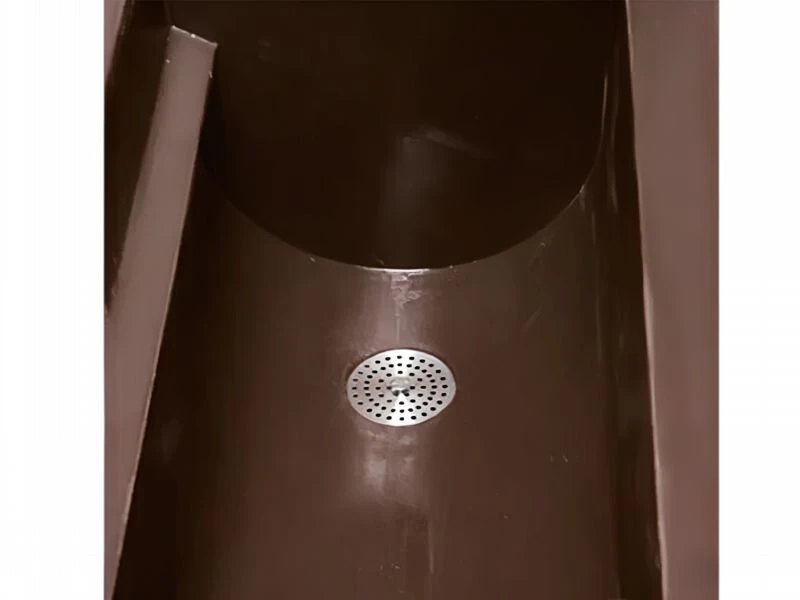

After finishing, the parts-media mixture passes through the discharge port into the separator, where built-in screens separate media by predetermined mesh sizes. Media is returned for reuse while finished parts exit through the separation deck-completing the integrated process without additional equipment.

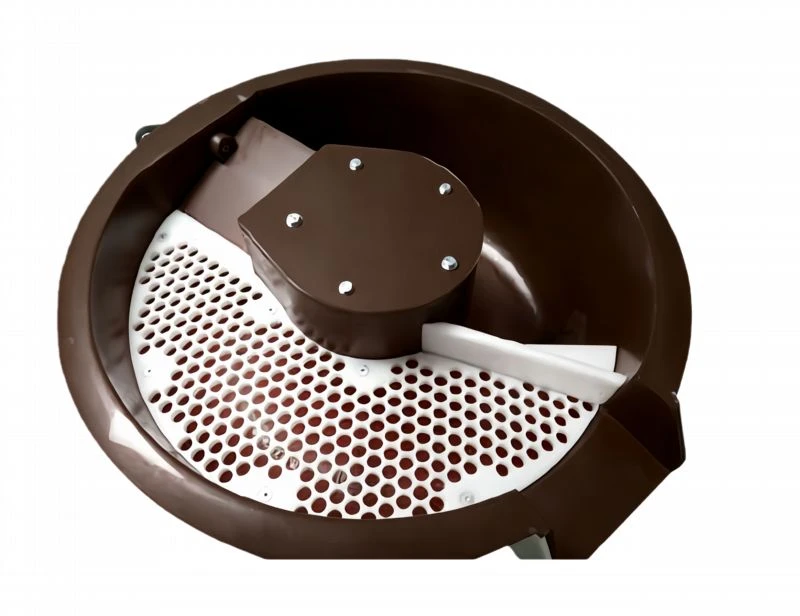

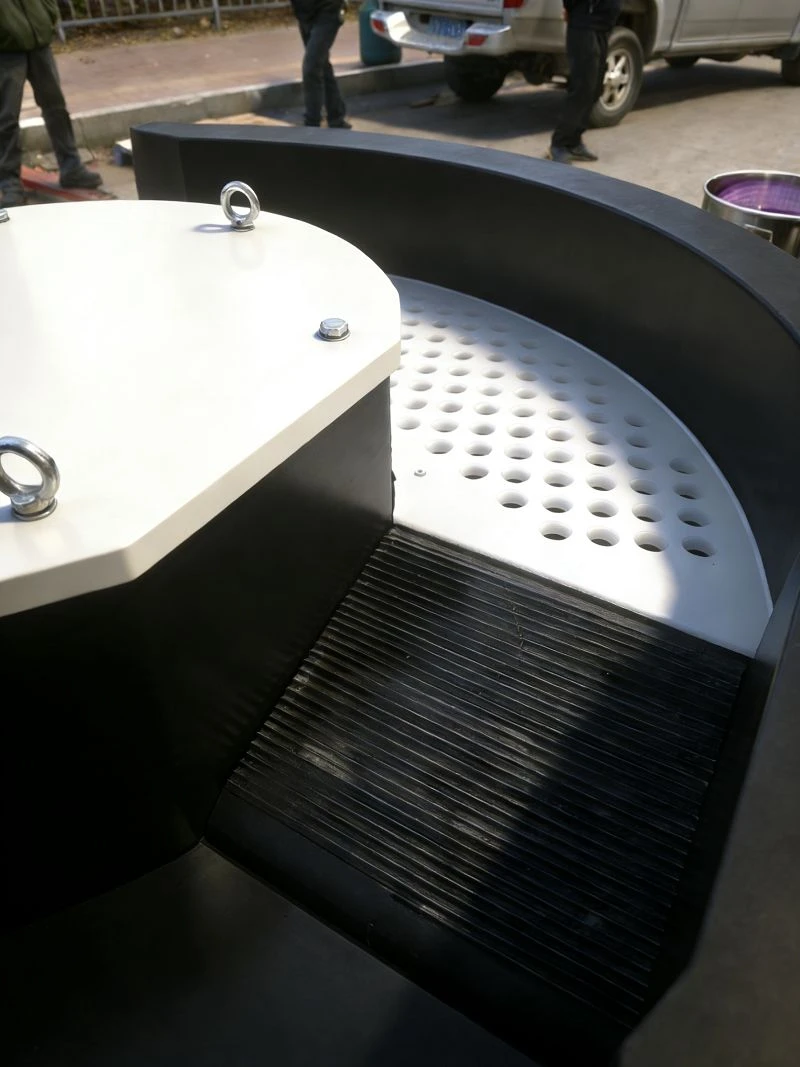

Integrated Separation System
A key feature of this machine is its built-in separator, eliminating the need to remove and separately screen the parts-media mixture-separation is performed directly on the equipment. Key advantages include:
Efficient Separation
Vibratory screens achieve rapid separation with accuracy up to 98%
Reduced Media Loss
Separated media is directly recoverable, minimizing waste
Continuous Operation
Supports automatic discharge and separation for high-volume batch processing

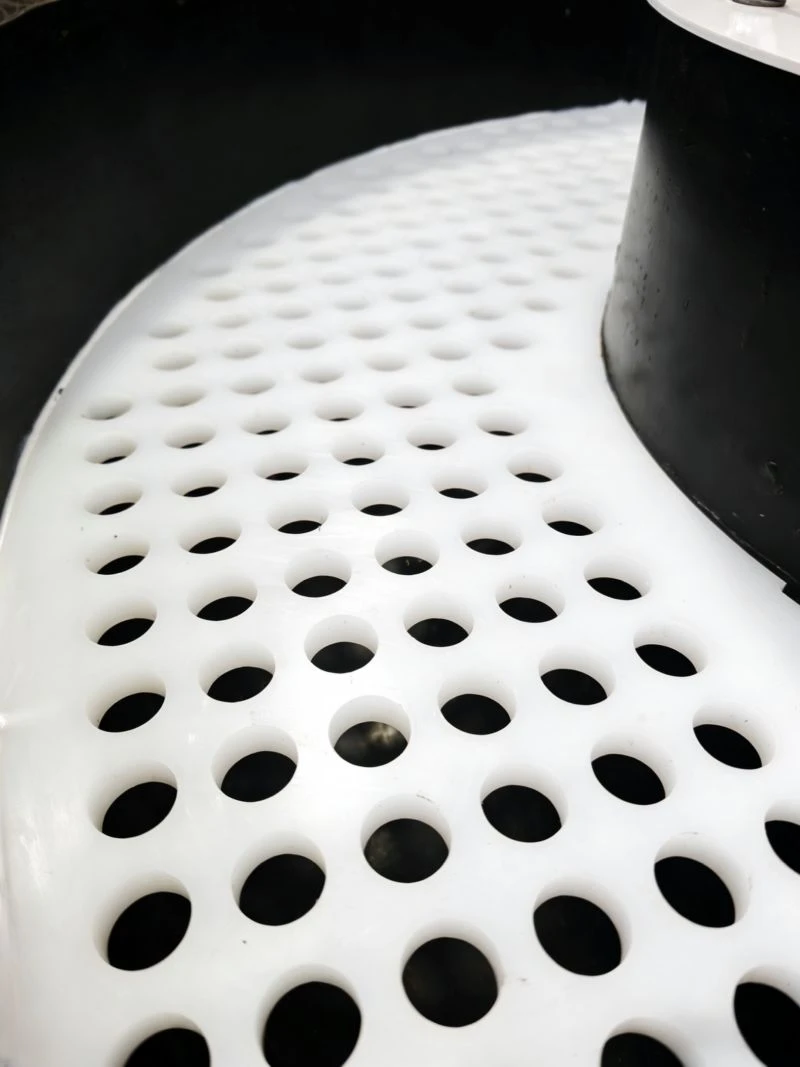

Custom Screens
Screen mesh sizes are tailored to specific workpiece dimensions and media types
Key Features
·Integrated Processing
Combines deburring, edge radiusing, coarse grinding, and fine polishing with automatic separation-delivering a complete workflow from processing to output in a single machine, eliminating transfer steps.
Advanced Vibratory System
Three-dimensional vibration technology delivers 6-10× higher efficiency than conventional methods without compromising original part dimensions or shapes.
Wear-Resistant PU Lining
The processing chamber features high-quality PU (polyurethane) lining that protects workpieces from metal-to-metal contact damage, reduces operating noise, and extends equipment service life.
Intelligent Control
Equipped with PLC control system and variable frequency speed adjustment, supporting program storage and automated operation with random inspection capability.
Wide Capacity Range
Available in capacities from 120L to 900L to meet various production requirements.

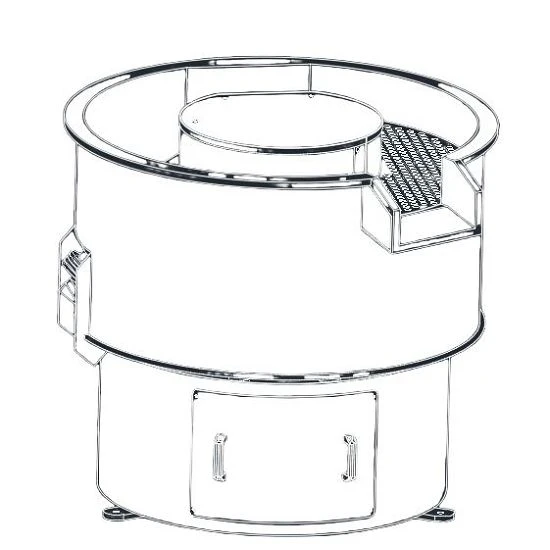

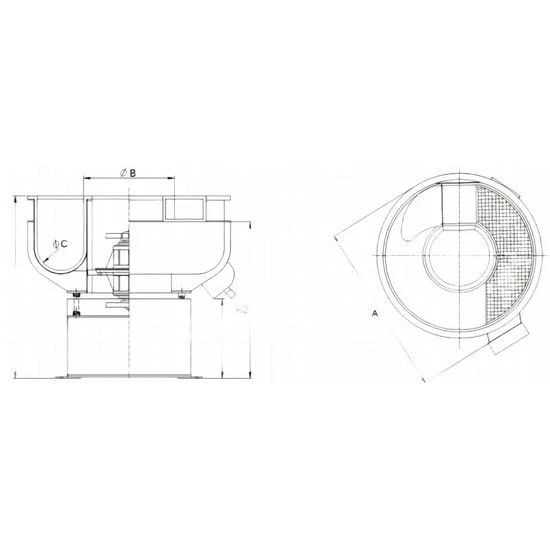

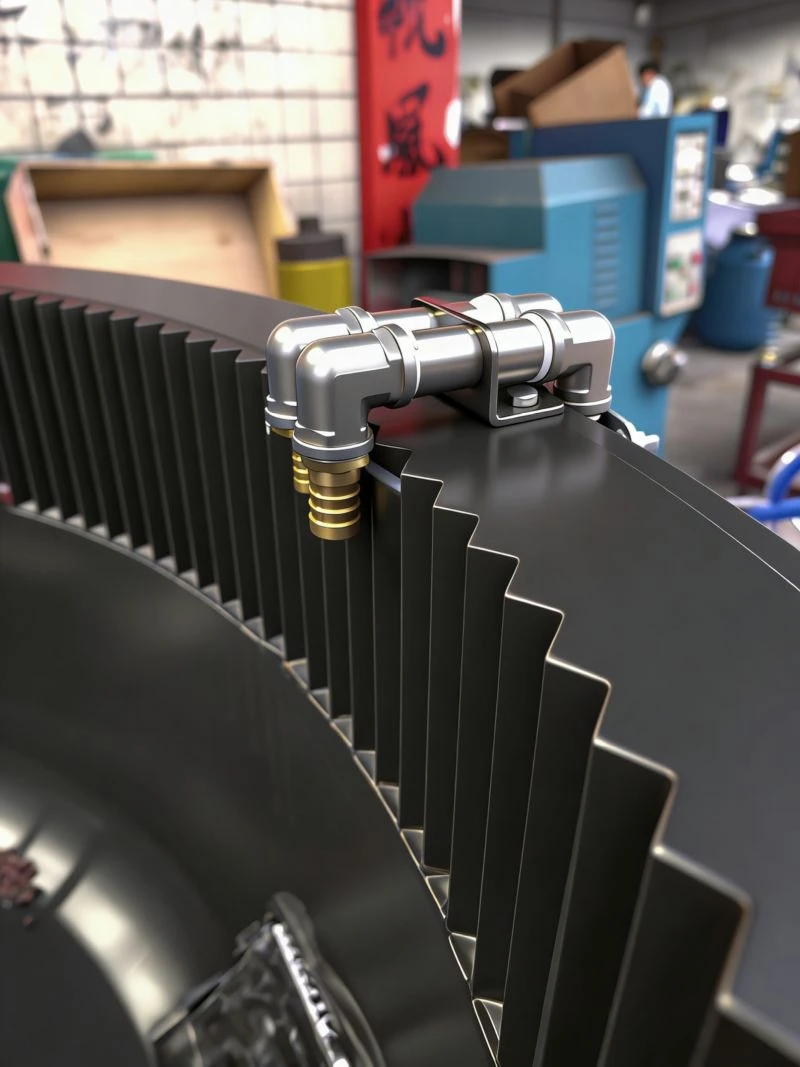

Product detail drawing
